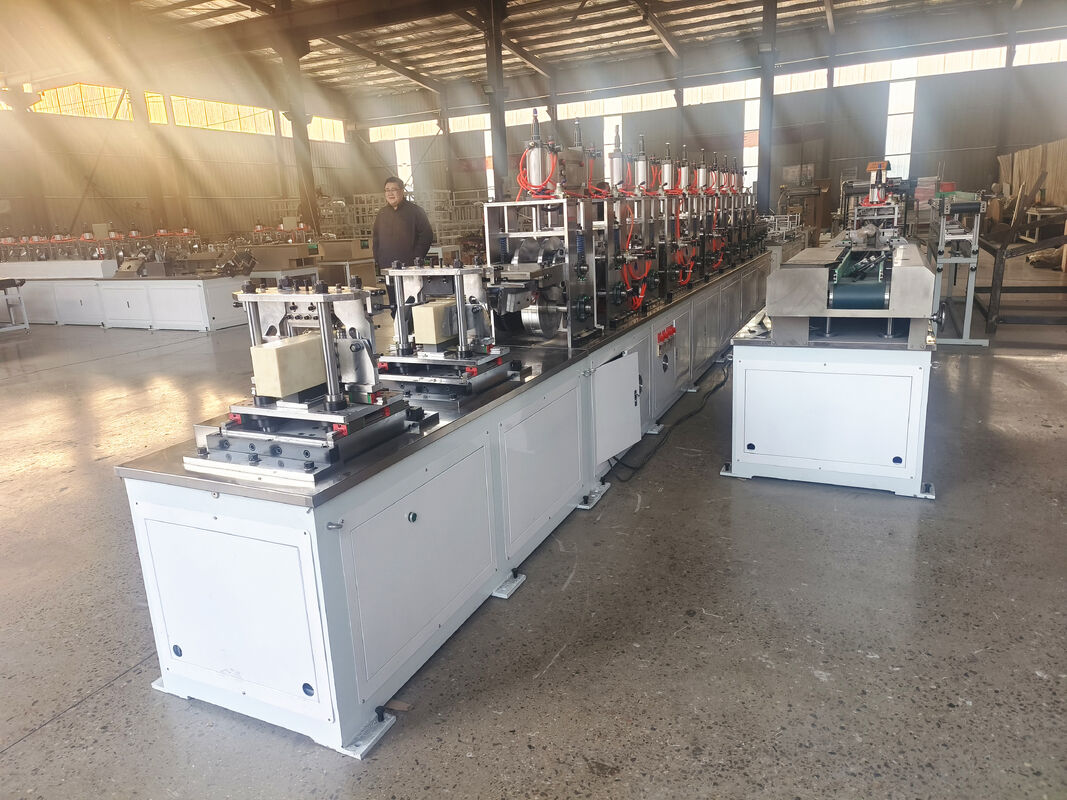

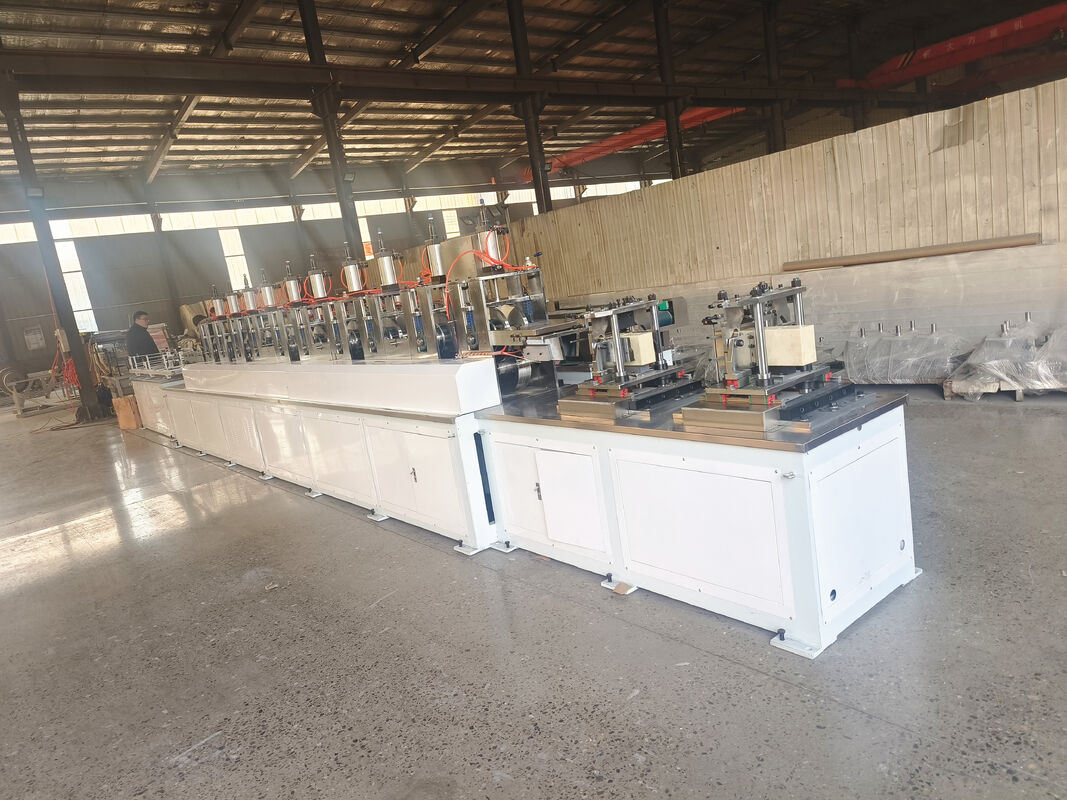

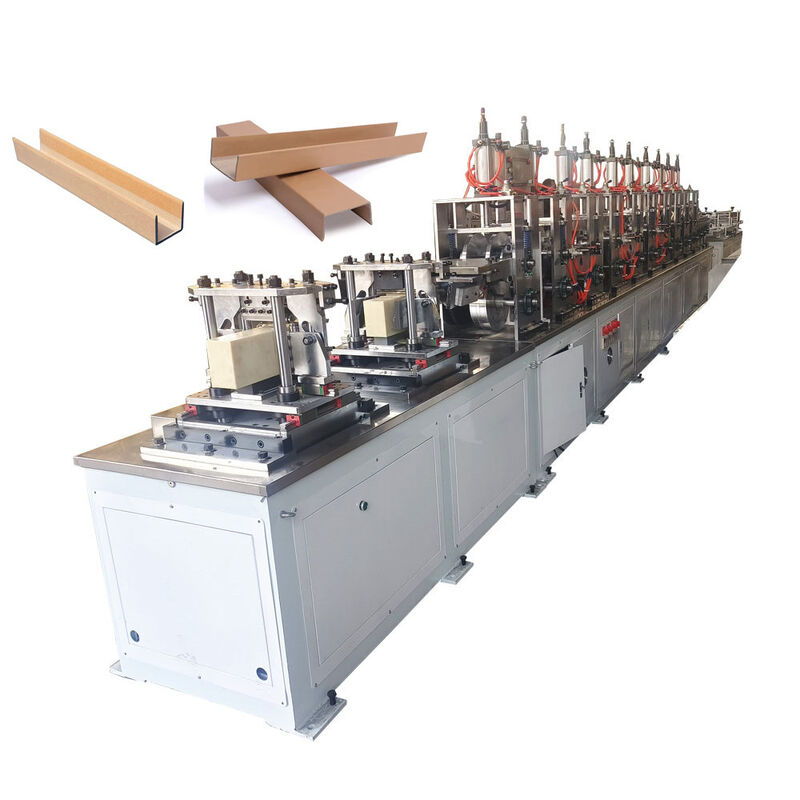

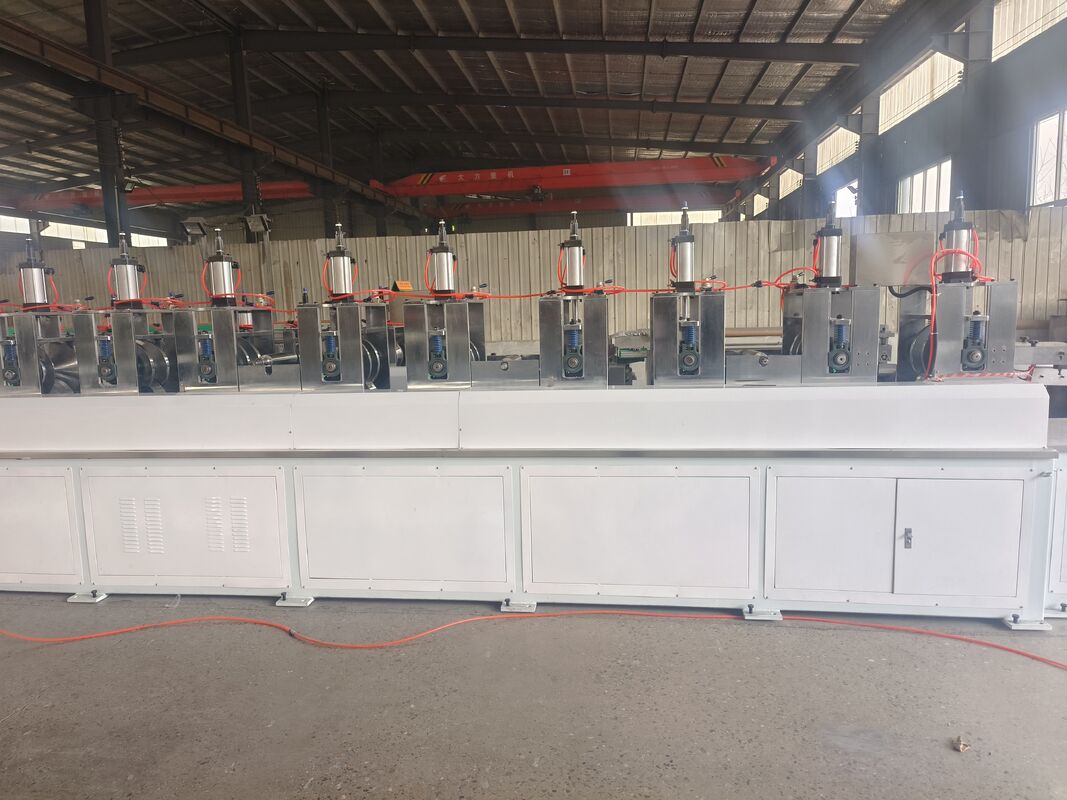

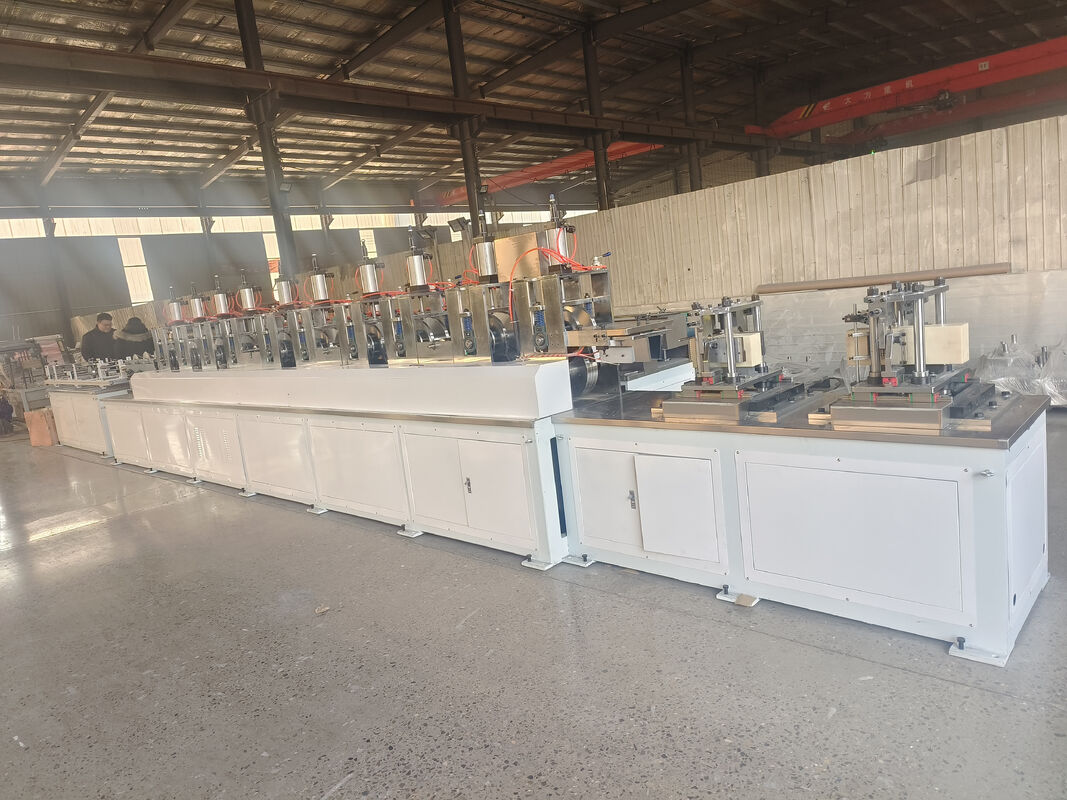

Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
-
Markeren
U channel cardboard edge protector machine
,automatic paper corner board making machine
,U shape craft paper tube machine
-
TypePapier U-kanaalmachine
-
Maatkan worden aangepast
-
Snelheid60 meter per minuut
-
Video uitgaande inspectieMits
-
MachinenaamU-vormige papierhoekmachine
-
plc-merkSchneider, Delta, Siemens
-
Werkbreedte100 mm
-
MachinemodelU-vormige papierhoekmachine
-
Plaats van herkomstChina (vasteland)
-
MerknaamKSPACK
-
CertificeringCE ISO
-
ModelnummerKSHJJ
-
Min. bestelaantal1
-
Prijs19800
-
Verpakking Detailsverwerkt houten kistpakket
-
Levertijd30 dagen
-
BetalingsconditiesL/C, D/A, D/P, T/T, Western Union
-
Levering vermogen30 sets per maand
Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Paper U Channel Machine
Professional cardboard U-shape craft paper edge protector and paper corner board making machine designed for industrial manufacturing applications.
Technical Specifications
| Paper Angle Protection Specification | Width: 20-100mm Thickness × Length: 50-9000mm |
| Production Speed | 0-30 m/min |
| Host Power | 7.5kW + 4.3kW |
| Control Mode | Numerical Control |
| Raw Material | Surface Paper: 150g-200g Core Paper: 300g-700g |
| Cutting Mode | Servo Tracking Cutting |
| Number of Operators | 1-2 People |
Configuration & Equipment
- Octagonal Device: Seven Groups
- Paper Holder Type: Right Angle Fixed Hoisting Paper Holder
- Glue Supply: Stainless Steel Heating Automatic Circulation Double-Sided Gluing
- Top Paper Device: Stainless Steel, Paper Basin with Transmission
- Host Mesa: Stainless Steel
- Transmission Device: Conveyor Belt and Receiving Table
- Table Cutting Device: Numerical Control
- Application Tools: One Set of Inner Hexagonal Wrenches
Dimensions & Weight
| Host Size (L×W×H) | 5100 × 840 × 1400 mm |
| Coverage Area (L×W) | 32m × 3m |
| Host Weight | 2780 kg |
| Total Weight | 4500 kg |
